NX Level Studios – (Server)

  • Cisco Catalyst WS-C3560G-48PS-S (Switch)
  • 48-Ports
  • 4-Ports SFP-based Gigabit Ethernet Ports
  • Dell PowerEdge Server R730-2U
  • Dell PowerEdge 3.20 GHz Hex Core
  • 8 Cores 16 Threads
  • 288GB RAM
  •  Drives
  • Primary OS / Raid 0
  • Storage Drive = NetApp DS4246 (24 x 3.5” bays)
  • LSI 9200-8e in IT Mode
  • iDrac8 Enterprise
  • 2x 1100w Power Supply
  • NetApp DS4246
  • Extended 24 Drive Bays
  • 2x IOM6 Controllers
  • 2x PSUs 580 watts each

NX Level Studios – (Backup)

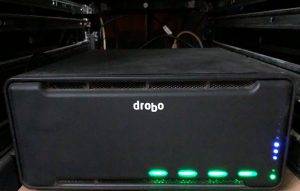

  • Drobo B800i 8-Bay
    • 2x 2TB = 16 TB total
